Coulometer Battery Monitor, ICSTATION 10-110V 10A Charging Discharging Protection Board with LCD Display Voltage Current Meter Low Voltage Protector Disconnect Switch for RV Solar Panel Golf Cart
US$5.76
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kenbilal.org
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
US$5.76
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by kenbilal.org
Free 30-day returns Details
Product details
| Management number | 234259610 | Release Date | 2026/06/27 | List Price | US$5.76 | Model Number | 234259610 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

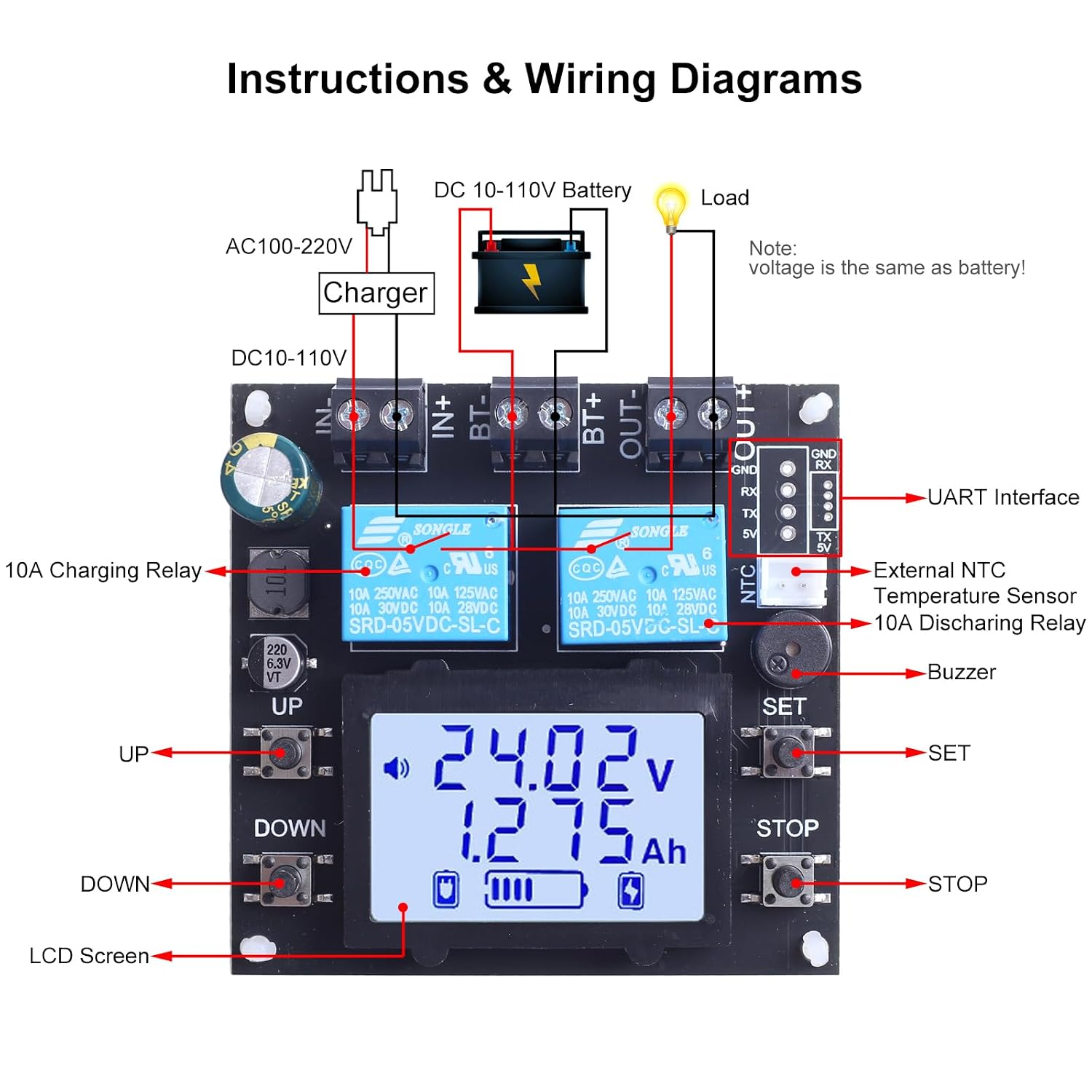

- Coulometer With LCD HD Display: Equipped with a clear and crisp LCD screen, the coulometer provides a comprehensive and easy-to-read display of the battery's real-time data. Users can monitor important parameters like the battery’s current (A), power (W), capacity (Ah), energy (Wh), charge percentage (%), usage time (h), and temperature (°C/°F) by simply pressing the SET button. This feature provides flexibility, making it easier to track the most relevant information according to the user's needs.
- Charge and Discharge Protection: You can choose the charging or discharging mode and set parameters as desired. As an example, the module will automatically disconnect when the battery voltage reaches the predetermined level to prevent over-discharging and extend the battery's lifespan. Furthermore, you can also configure the charging and discharging time according to your requirements.
- Uninterruptible Power Supply (UPS) Mode: Compared to other charge and discharge protection modules from ICSTATION, this coulometer also supports an uninterruptible power supply mode, which allows users to simultaneously charge and discharge the system. Once the UPS mode is enabled, the charger will not only charge the battery but also power the load. Even after the battery is fully charged, the charging relay will remain engaged, continuing to supply power to the load. This helps significantly reduce the battery's consumption during operation. However, if the charger loses power, the battery will automatically take over and supply power to the load until its energy is depleted.
- Alarm Function: The charge and discharge controller comes with an buzzer designed to alert users in the event of any battery anomalies or operational issues. If the system detects any irregularities, such as overcharging, over-discharging, or temperature extremes, the controller will both display a visual warning on the screen and trigger the buzzer to emit an audible alarm. This dual-alert system ensures that you never miss a potential problem. The on-screen warning provides a clear visual indication of what the issue is, while the buzzer acts as a prompt to notify you even if you're away from the display or in a noisy environment.
- NOTE: This product is a battery charge/discharge controller , which turns on and off the output through a relay, which only acts as a switch and cannot change the voltage. In addition, if you have any questions in use, please let us know.
| ASIN | B0G1BX4RGC |
|---|---|
| Color | Black |
| Model | GY21871-1 |
| Brand Name | IS |
| Style Name | Industrial |
| Unit Count | 1.0 Count |
| Part Number | GY21871-1 |
| Manufacturer | icstation |
| Power Source | Corded Electric |
| Specification Met | CE, RoHS |
| Compatible Devices | Golf carts, boats, recreational vehicles, devices using lithium, lithium iron phosphate, or lead-acid batteries |
| Included Components | Coulometer |
| Upper Temperature Rating | 60 Degrees Celsius |
| Minimum Operating Voltage | 10 Volts |
